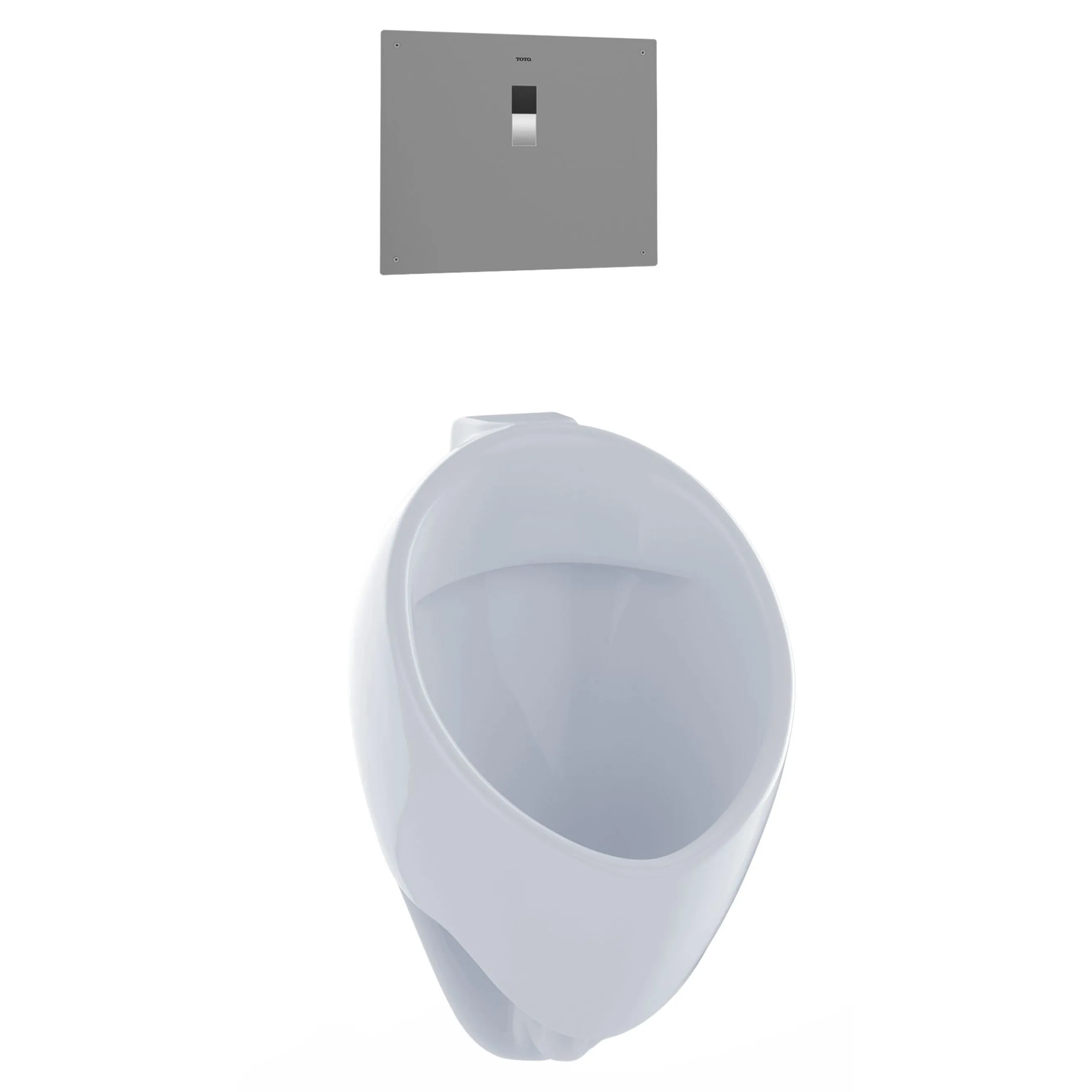

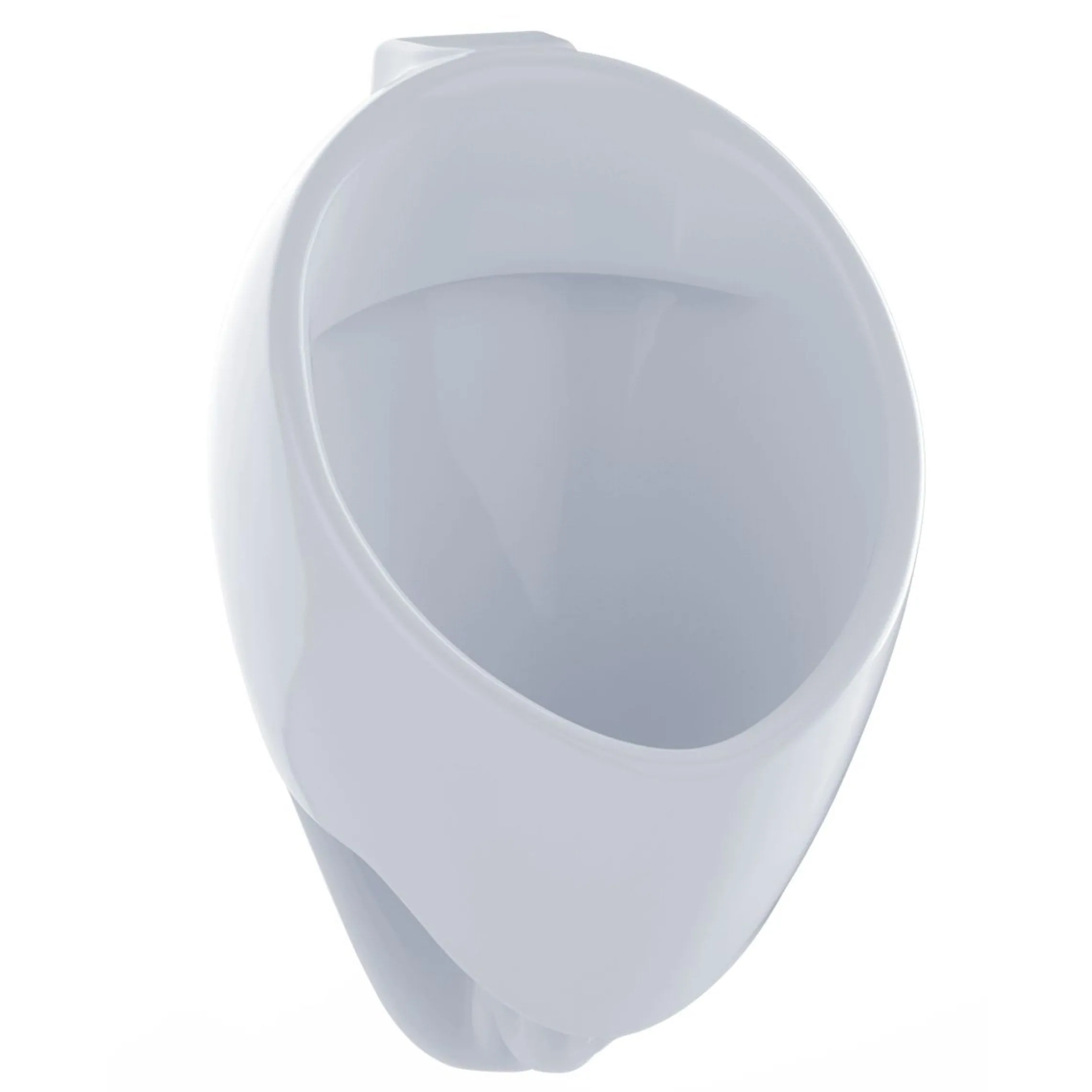

This wall-mounted, ADA compliant, high-efficiency washout urinal delivers a sustainable 0.125GPF/0.47LPF when paired with a 0.125 GPF flushometer valve (not included).

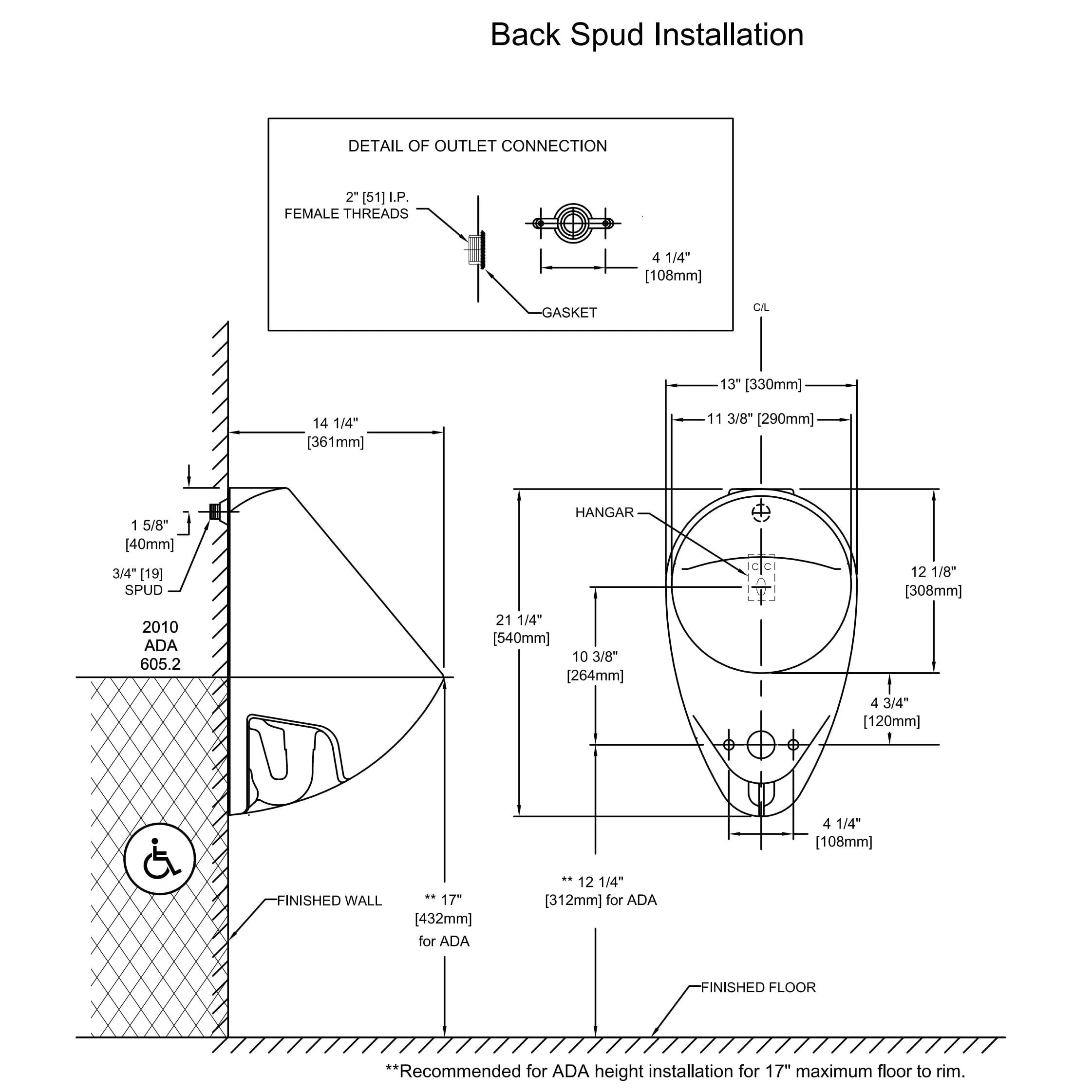

Will comply with ADA when installed per Section 605 - Urinals of the ADA 2010 Accessible Design Standard with maximum rim height of 17" and minimum depth of 13-1/2". Will comply with CSA B651 when installed per Clause 6.2.8 Urinals of the CSA 2012 Accessible Design Standard with maximum rim height of 17" and minimum depth of 13-1/2".
Ultra-low high efficiency urinals require a system with a minimum 2% slope. Maximum drainage capacity rated at 6.6 gal/min (25 L/min). Adjust angle stop accordingly to prevent overflow. Confirm with local codes and standards for floor drain requirement.
TOTO UT105UV#01 Commercial Urinal Features
- Compact urinal with concealed integral trap
- Washout flush action with 3/4" top or back spud inlet
- Complete with low profile dome strainer
TOTO UT105UV#01 Commercial Urinal Specifications
- Water Use: 0.125GPF/0.47LPF
- Flush System: washout flush action
- Warranty: 1 Year Limited Warranty
- Material: Vitreous china
- Min. Water Pressure: 15 psi (flowing)
- Height (Urinal Only): 21-3/4"
- Width: 12-1/4"
- Rim: 14"
- Flush valve not included
newmisctag
TOTO UT105UV#01 Commercial Urinal Standards & Compliance
- Meets and exceeds ASME A112.19.2/CSA B45.1
- Certifications: IAPMO(cUPC), State of Massachusetts , City of Los Angeles
- Code compliance: UPC, IPC, NSPC, NPC Canada, and others
- Legislative Compliance: California AB715, CALGreen Title 24, California Energy Commission Standards
- ADA compliant
