Description

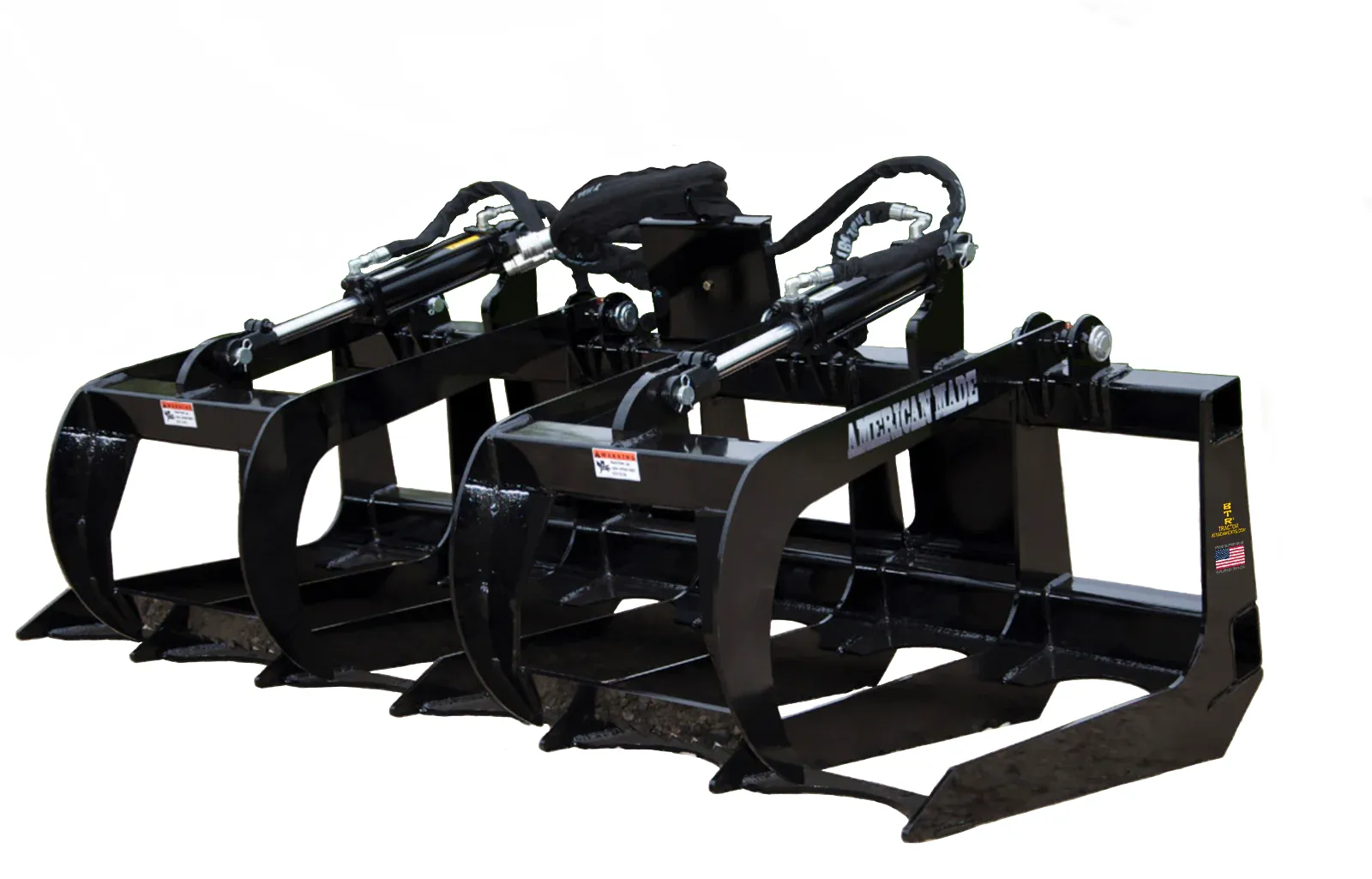

The Light Duty Brush Grapple is designed for smaller skid steers and tractors. It weighs much less than our other grapples, but is still built tough enough to handle a big workload. We designed this light duty brush grapple to have open sides, allowing you to carry longer objects. The carrying capacity is rated at 1,500 lbs.
Specifications

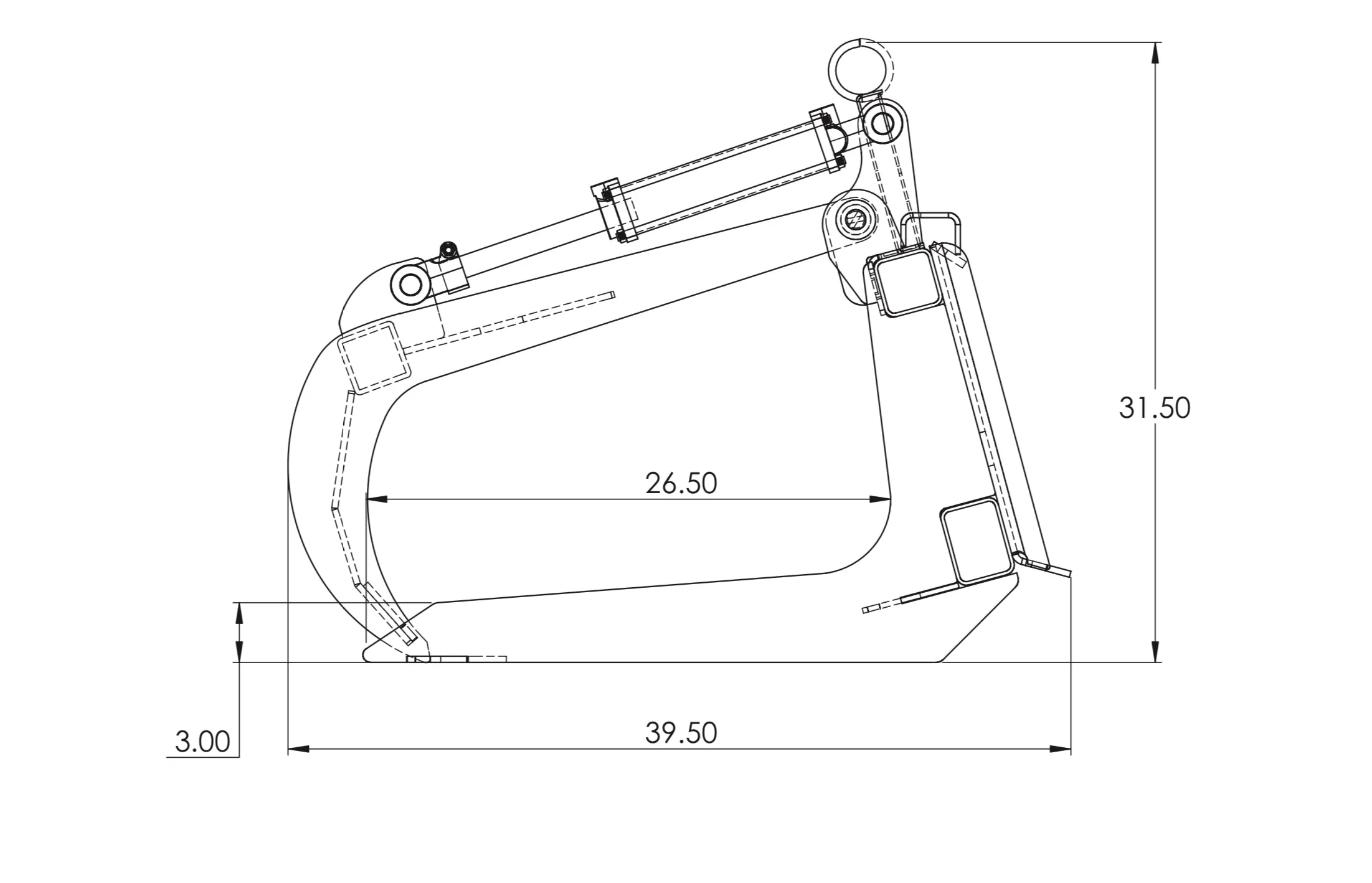

| Size | 60" | 72" |
| Width | 60" | 72" |
| Overall Height (Closed) | 31 1/2" | 31 1/2" |
| Overall Height (Opened) | 50" | 50" |
| Overall Depth | 39 1/2" | 39 1/2" |
| Grapple Opening | 42 1/2" | 42 1/2" |
| Depth of Bucket | 26 1/2" | 26 1/2" |
| Tines and Braces | 5/16" | 5/16" |
| Top Tube | 3 x 3 x .187 | 3 x 3 x .187 |
| Bottom Tube | 3 x 4 x .187 | 3 x 4 x .187 |
| Grapple Arms | 5/16" gusseted | 5/16" gusseted |
| Cylinders | 2" bore | 2" bore |
| Weight | 400 lbs | 450 lbs |
